Flywoo GOKU GM10 Nano V3.1 GPS Module
The V3.1 version of GOKU GM10 Nano GPS retains the extremely small size and adds a new plug. No soldering is required. It's plug-and-play for convenient installation. It adopts the latest M10050 chip, supports multiple satellite systems, has high sensitivity, fast data update rate, weighs only 2.5g.
Description
Brand: FLYWOO
Model: GM10 NANO V3 GPS

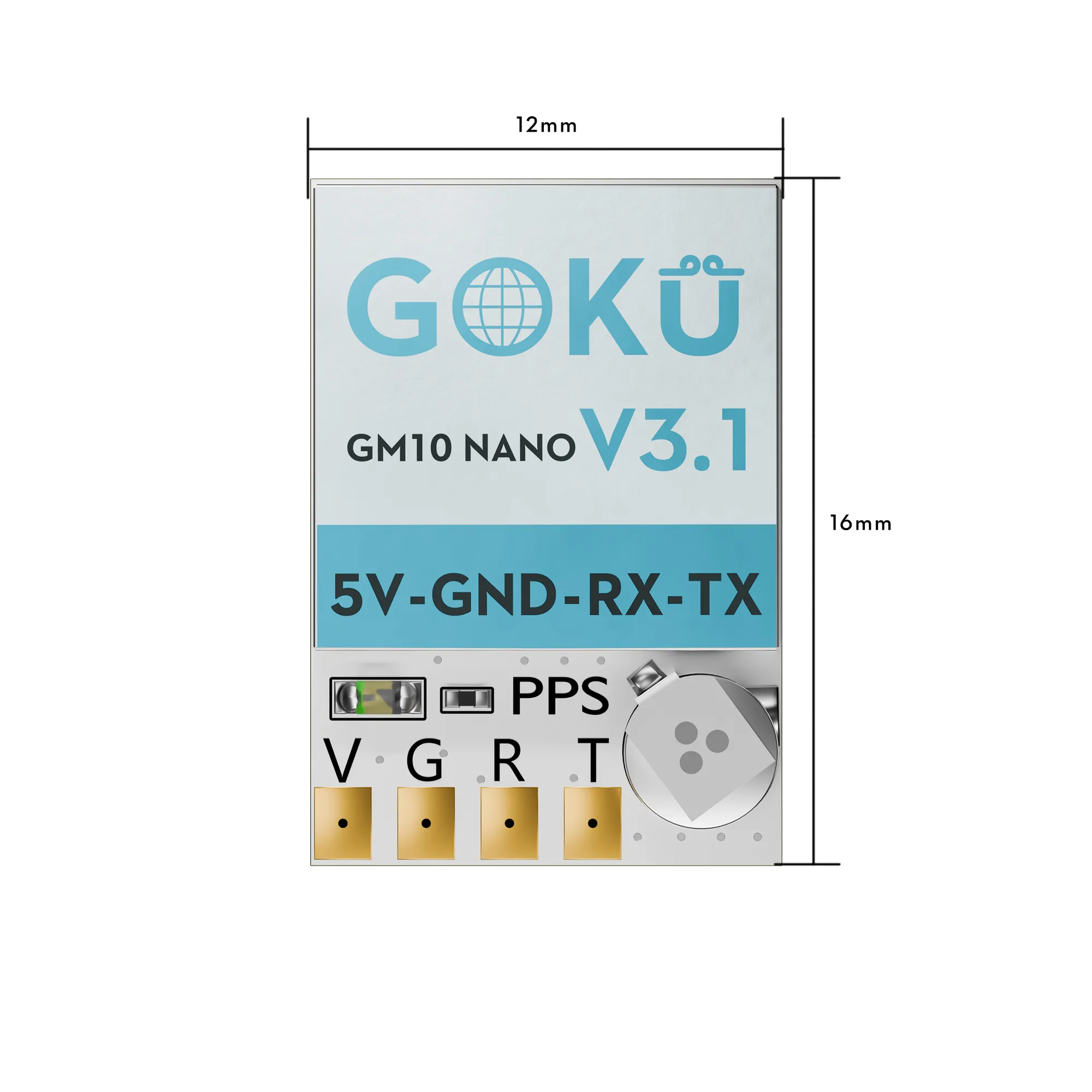

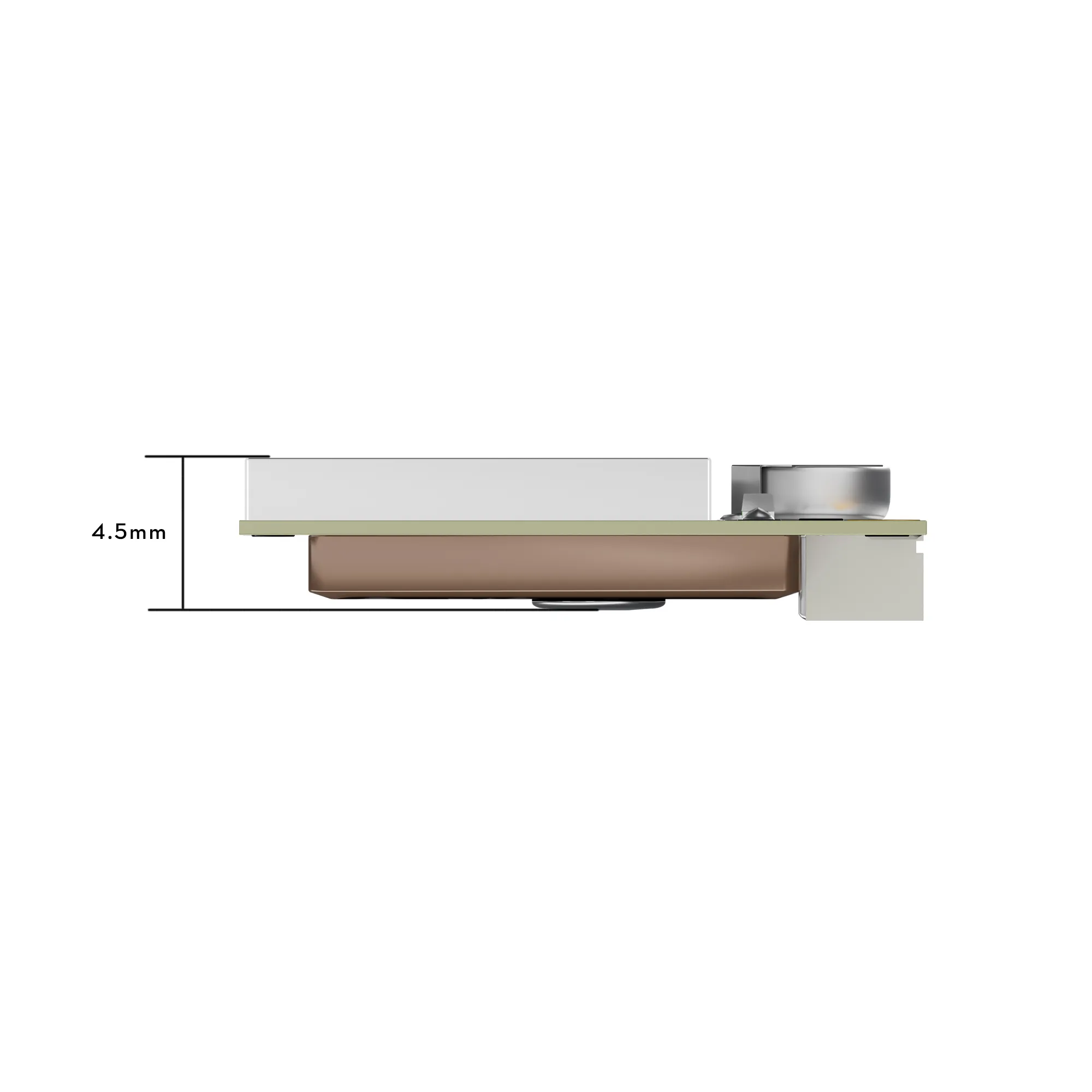

Dimension :12mm*16mm*4.5mm

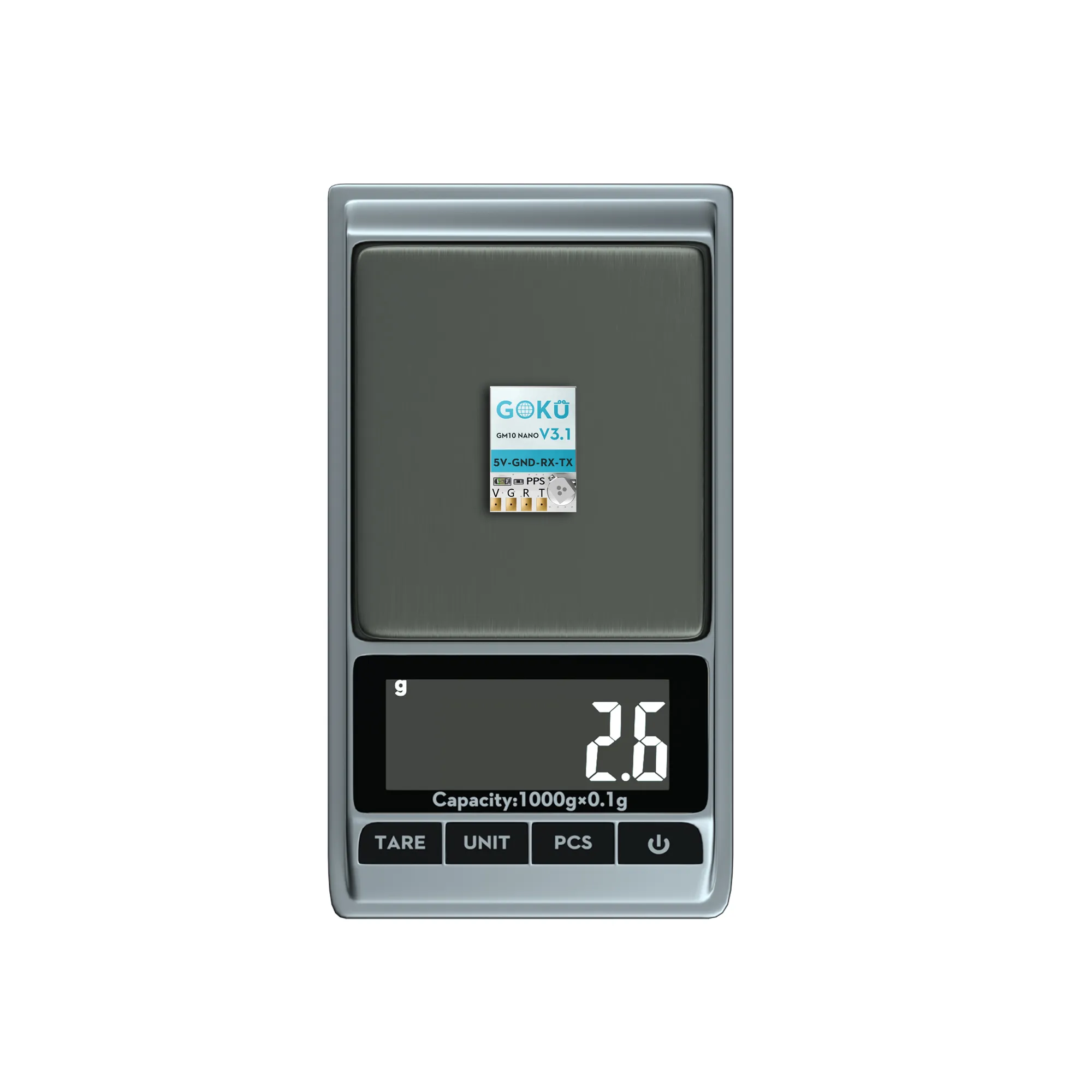

Weight : 2.5g
Connector : 4pins Pad
Features:
GPS Module,Three Module
4pins Pad，ultra light weight
Specification
Electrical Characteristics
Chipset : M10050(Tenth Generation Chip)
Receiving Format : GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS
Default Protocol : GPS,Galileo,BeiDou
Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo E1
Channels : 72 Searching Channel
Sensitivity
Tracking : -162dBm
Reacquisition : -160dBm
Data and Update Rate
Support Rate : 4800bps to 921600bps,Default 115200bps
Data Level : TTL or RS-232,Default TTL level
Data Protocol : BF4.3.X(UBLOX)/BF4.2.X(NMEA)
Output frequency : 1Hz-10Hz，Default 10Hz
Operational Limits
Altitude : 50,000m Max
Velocity : 500m/s Max
Acceleration : Less than 4g
Power consumption
VCC : DC Voltage ：3.3-5V
Operating temp : -40 °C ~ +85°C
Storage Temp : -40°C ~ +105°C
Indicator :
PPS LED:yellow .PPS LED not bright when GPS not fixed,flashing when fixed
The Module’s Pins: RX TX 3.3-5V GND
Includes
1x GM10 NANO V3.1 GPS
1x 100mm Cable
1x Copper Foil
