The DJI O4 Air Unit Pro is a state-of-the-art digital video transmission system, designed to elevate your FPV drone experience with ultra-low latency, extended range, and superior image quality. Weighing approximately 32 grams, this compact unit integrates a 1/1.3-inch CMOS sensor, capable of recording 4K/120fps video, ensuring crisp and fluid visuals for both professional and hobbyist pilots.

For in-Depth information about all the new DJI O4 specifications, please check this video:

Features:

Works with DJI Goggles 2, DJI Goggles Integra, DJI Goggles 3, or DJI Goggles N3
Compatible with DJI FPV Remote Controller 2 or 3
Flagship FHD FPV Digital Video Transmission
155° Ultra-Wide Field of View (FOV)
15 ms Low Latency, 15 km Range
4K/120fps Video Recording
1/1.3-inch CMOS Sensor
1080p/100fps Live View
32g Body

New Heights in Transmission, More Freedom in Flight

The DJI O4 Air Unit Series is equipped with the DJI O4 video transmission system, achieving ultra-low latency for more responsive controls. Paired with the dual-antenna design of the DJI O4 Air Unit Pro, the max transmission distance can reach up to 15 kilometers. This system can automatically select the most stable frequency. Whether soaring over mountains and rivers or navigating indoor spaces, perform confidently with precision.

Crisp and Fluid, Visually Striking

The DJI O4 Air Unit Series is capable of recording 4K/60fps video. The video transmission system utilizes H.265 video encoding, supporting high-frame-rate transmission at 1080p/100fps, ensuring clear and smooth real-time imagery. No matter how fast you fly, the camera view keeps up.

New Racing Mode: Unleashed Speed, Unlimited Fun

The DJI O4 Air Unit Series introduces a new Racing mode, with video transmission latency as low as 15 ms with the O4 Air Unit Pro and 20ms with the O4 Air Unit. It supports up to eight aircraft racing simultaneously, taking you on an exhilarating, high-speed journey through the skies.

Upgraded Imaging: Cinematic Masterpieces at Your Fingertips

The DJI O4 Air Unit features a 1/2-inch image sensor, capable of capturing 4K/60fps video. The DJI O4 Air Unit Pro goes a step further with a 1/1.3-inch image sensor, supporting 4K/120fps video recording. No need for an external action camera to achieve ultra-wide-angle, high-definition footage. Creating stunning visuals has never been so effortless.

Even in Intense Light, Create With Confidence

The DJI O4 Air Unit Pro Camera Module can be used with the DJI Avata 2 ND Filter Set (ND8/16/32). Even in bright lighting conditions, it ensures balanced exposure and true-to-life colors. This allows you to flexibly control light intake and shutter speed, easily achieving natural motion blur and making your footage more dynamic and impactful.

Compatible With Canvas Mode: Your Flights, Your Way

Have full control over what's displayed on your screen. The DJI O4 Air Unit Series supports Canvas Mode and Betaflight OSD settings. You can customize the real-time data and layout displayed on your goggles screen, making flight data clear at a glance, and enhancing your control precision.

Lightweight Design, Effortless Adaptation

The DJI O4 Air Unit Series adopts a lightweight and portable design with extensive compatibility. Specifically, the DJI O4 Air Unit can fit drone frames of 2 inches and smaller, supporting flexible assembly to suit various creative flight scenarios. Experience the thrill of flying while capturing high-quality footage with ease.

Specifications:

DJI O4 AIR UNIT PRO

Weight:
- Air Unit (camera module excluded): Approx. 15.6 g
- Air Unit (camera module included): Approx. 32 g
- Antenna: Approx. 2.1 g/pcs
Dimensions:
- Transmission Module: 33.5 × 33.5 × 13 mm (L × W × H)
- Camera Module: 25.55 × 20 × 23.30 mm (L × W × H)
- Coaxial Cable: 140 mm
- 3-in-1 Cable: 100 mm
- Antenna: 110 mm

VTX Mounting Pattern: 20x20/25.5x25.5mm

VIDEO TRANSMISSION

Operating Frequency:
- 5.170-5.250 GHz
- 5.725-5.850 GHz
  Note: Operating frequency varies by region. Follow local regulations.
Transmitter Power (EIRP):
- 5.1 GHz: <23 dBm (CE)
- 5.8 GHz:
  - <33 dBm (FCC)
  - <14 dBm (CE)
  - <30 dBm (SRRC)
Lowest Latency:
- DJI Goggles 3 in Racing Mode: 15 ms (1080p/100fps)
- DJI Goggles N3 in Racing Mode: 19 ms (1080p/100fps)
- DJI Goggles 2 or Goggles Integra: Less than 30 ms (1080p/100fps)
  Note: Latency data was tested in an outdoor environment without interference.
Max Video Transmission Range:
- DJI Goggles 3/DJI Goggles N3:
  - 15 km (FCC)
  - 8 km (CE)
  - 8 km (SRRC)
    Note: Transmission range varies by flight endurance and environment.
Live View Quality: 1080P@30/48/50/60/100fps
Communication Bandwidth: Max 60 MHz
Antenna: 2 antennas, 2T2R
Channels:
- Supports auto and manual mode
- DJI Goggles 3/N3:
  - 60 MHz: 1 channel
  - 40 MHz: 1 channel
  - 20 MHz: 3 channels
  - 10 MHz: 3 channels
- DJI Goggles 2/Integra:
  - 40 MHz: 1 channel
  - 20 MHz: 3 channels
  - 10 MHz: 3 channels
Channels Info:
- FCC/SRRC/CE:
  - 60 MHz/40 MHz:
    - Channel 1: 5794.5 MHz
  - 20 MHz/10 MHz:
    - Channel 1: 5768.5 MHz
    - Channel 2: 5789.5 MHz
    - Channel 3: 5814.5 MHz

CAMERA

Image Sensor: 1/1.3-inch CMOS Sensor
Lens:
- FOV: 155°
- Equivalent Focal Length: 12 mm
- Aperture: f/2.8
- Focus: 0.6 m to ∞
ISO Range:
- 100-25600 (Auto)
- 100-25600 (Manual)
Video Resolution:
- 4K (4:3): 3840 x 2880@30/48/50/60fps
- 4K (16:9): 3840 x 2160@30/48/50/60/100/120fps
- 2.7K (4:3): 2888 x 2016@30/48/50/60fps
- 2.7K (16:9): 2688 x 1512@30/48/50/60/100/120fps
- 1080P (4:3): 1440 x 1080@30/48/50/60/100/120fps
- 1080P (16:9): 1920 x 1080@30/48/50/60/100/120fps
Video Format: MP4
Max Video Bitrate: 130 Mbps
Color Mode:
- Normal Mode
- D-Log M
Camera FOV Modes:
- Standard
- Wide-Angle
- Ultra Wide-Angle
Electronic Image Stabilization (EIS):
- RockSteady 3.0+
- Stabilization off (supports Gyroflow)
  Note: RockSteady only supports standard angles.

HARDWARE

Input Voltage: 7.4-26.4 V
Operating Temperature: -10°C to 40°C

STORAGE

Built-in Storage: 4GB
Supported SD Cards: microSD (up to 512 GB)
Recommended microSD Cards:
- Lexar Professional 1066x (64GB, 128GB, 256GB, 512GB)
- Kingston Canvas Go! Plus (64GB, 128GB, 256GB, 512GB)

COMPATIBILITY

Supported Flight Controller System: Betaflight 4.3.0 and higher
Supported DJI Goggles and Remote Controllers:
- DJI Goggles 3 + DJI FPV Remote Controller 3
- DJI Goggles N3 + DJI FPV Remote Controller 3
- DJI Goggles 2 / Goggles Integra + DJI FPV Remote Controller 2
  Note: The flight control firmware must support the SBUS protocol for using the DJI FPV Remote Controller.

DJI O4 PRO ANTENNA

Weight: Approx. 2.1g
Length: 110 mm

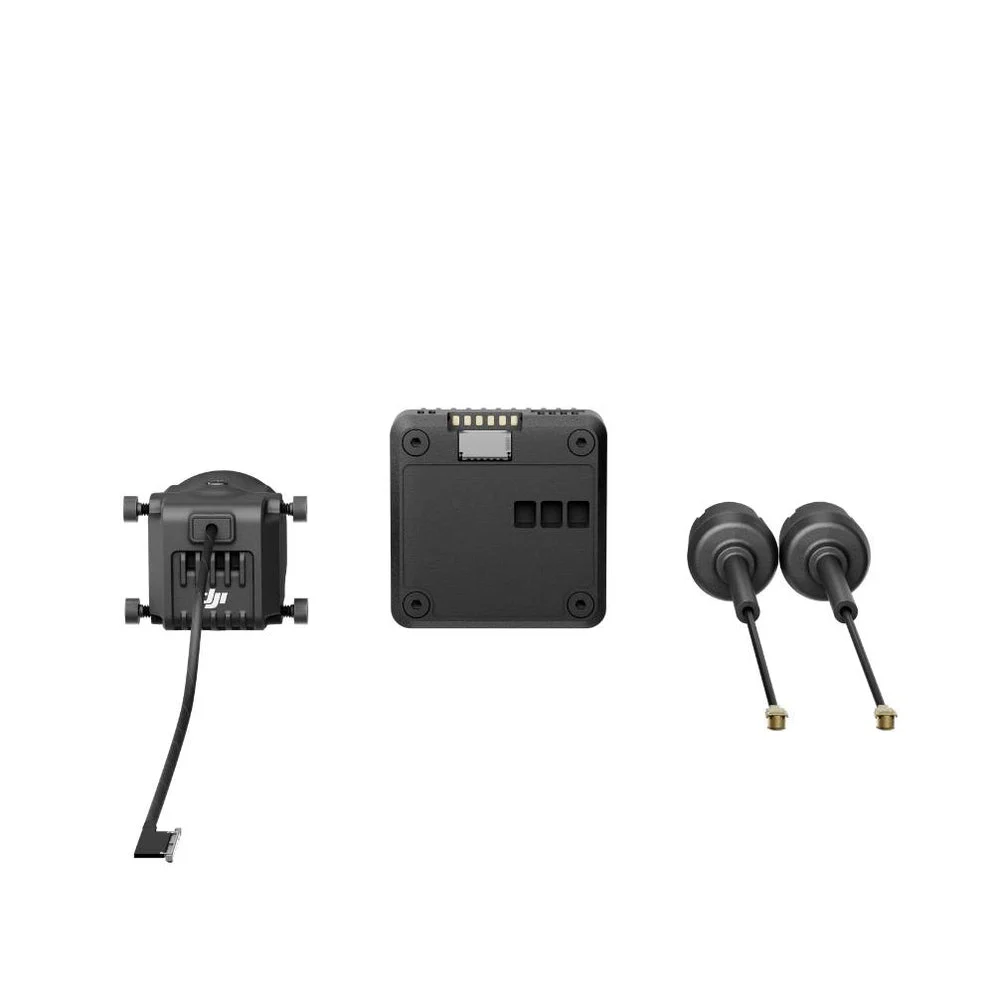

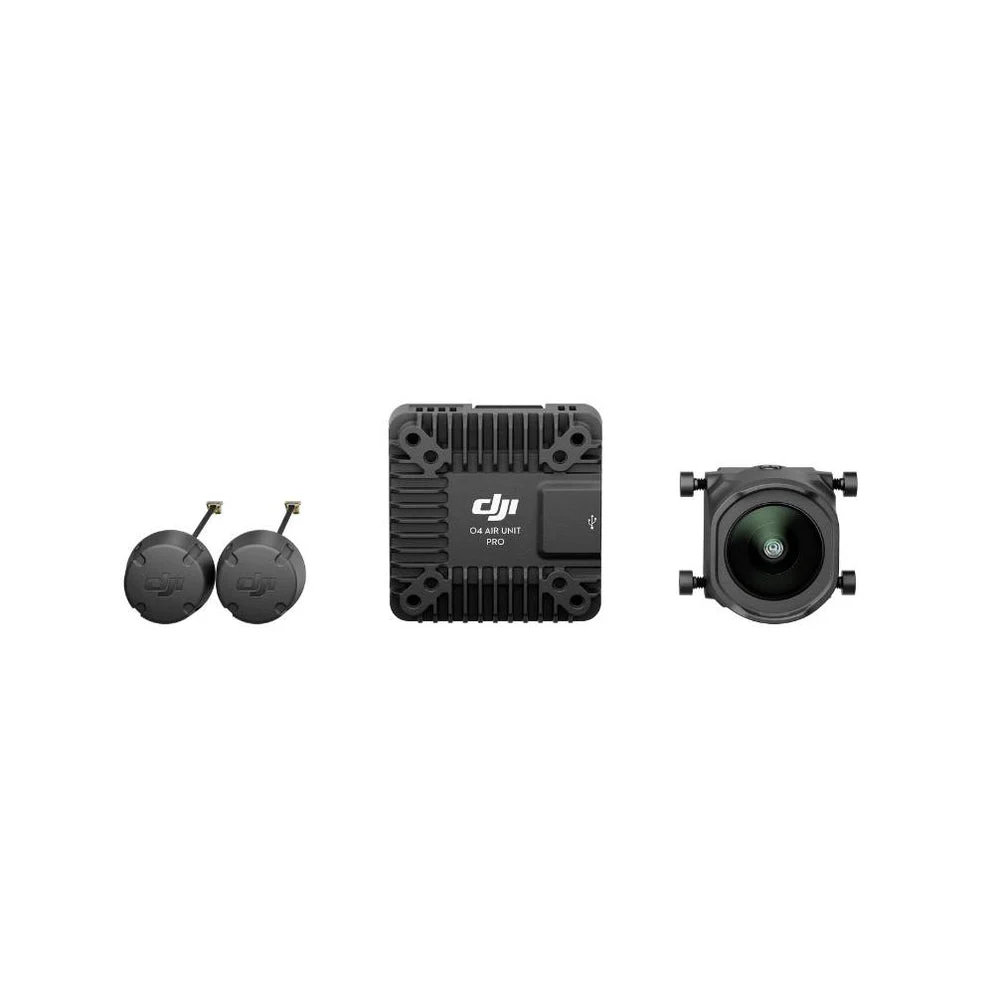

Package Includes:

1 x DJI O4 Air Unit Pro Camera Module
1 x DJI O4 Air Unit Pro Transmission Module
2 x DJI O4 Air Unit Pro Antenna
1 x DJI O4 Air Unit Pro 3-in-1 Cable

Laws and requirements regarding transmission of radio waves vary greatly across the world. In some countries, this product may not be legal. In the USA, the operator of this product is required by law to have a HAM amateur radio license, at the very least. It is the operator's responsibility to make sure that they are using this product in a legal manner, or not using it at all if not possible to do legally in their location. By adding this product to your cart, you are confirming that you have read this notice, and that Zencopter LLC is in no way responsible for the actions of the operator while using this product.

Warranty Policy:

If any warranty needs for this product arise, please note that the manufacturer of this product is one of the few manufacturers we carry that requests the end user to contact them directly for any troubleshooting or possibly defective items. We must follow these policies set by these manufacturers. Please make sure to contact them directly if you feel your product is defective in any way. Reach out to us if you need an email address or contact link for this manufacturer.

🔗 Explore More Digital FPV Systems:

Digital FPV Transmitters
FPV Cameras & Accessories

Order now at Zencopter.com and take your aerial adventures to new heights!

New Arrivals – Latest FPV Drones, Parts & Accessories

DJI O4 Air Unit Pro Digital Transmission System

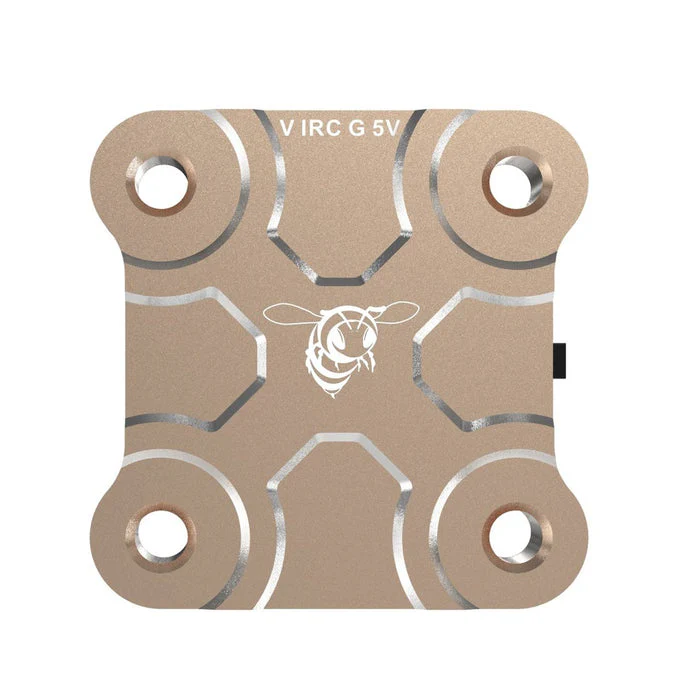

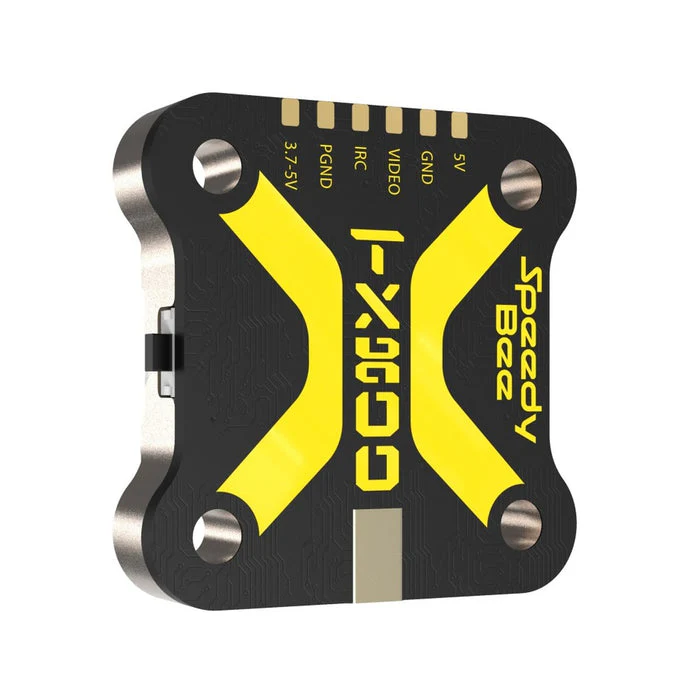

SpeedyBee TX800 5.8GHz Video Transmitter – 800mW VTX

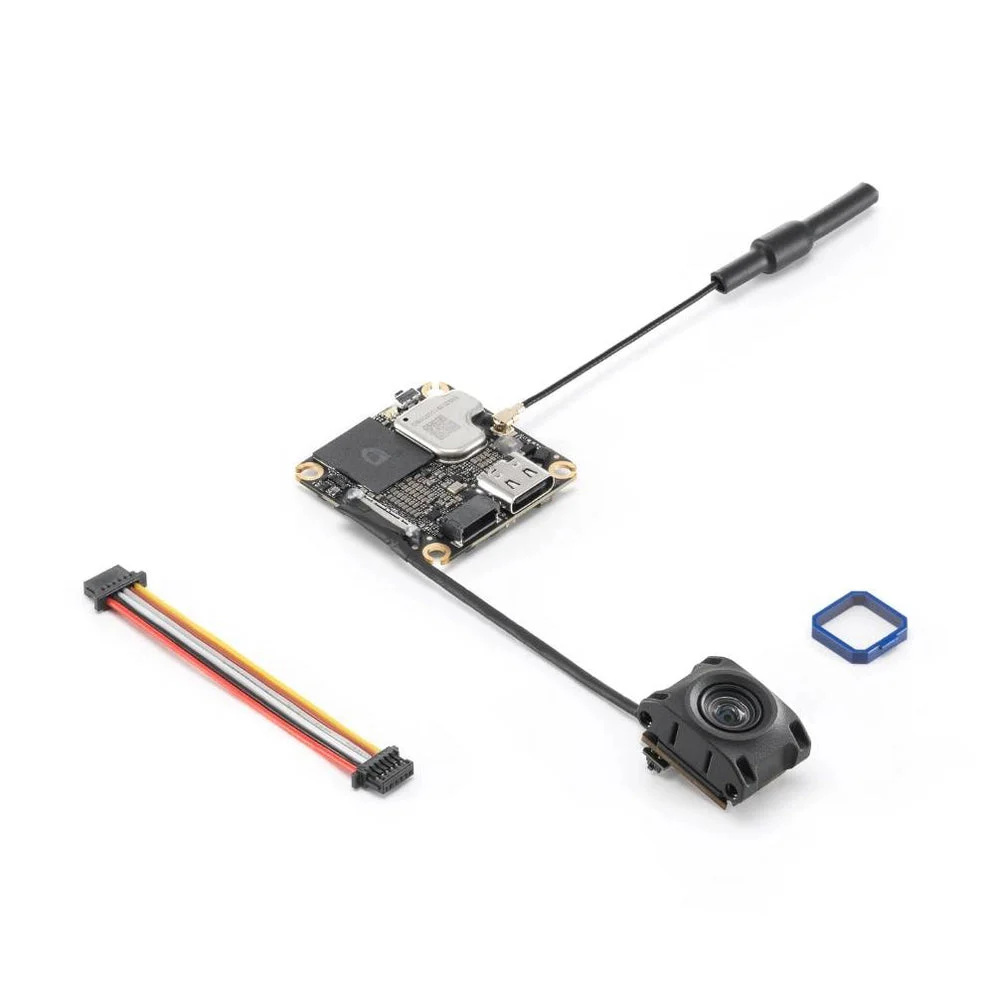

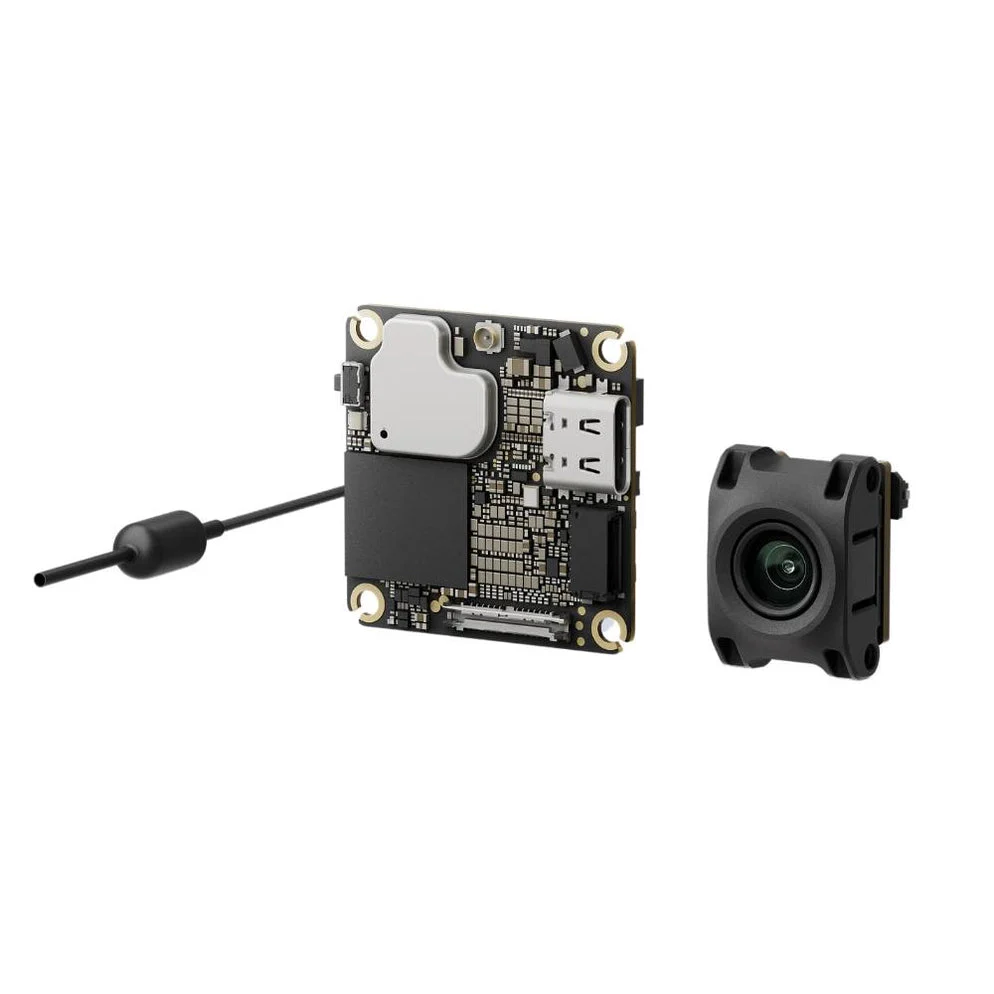

DJI O4 Air Unit Digital Transmission System

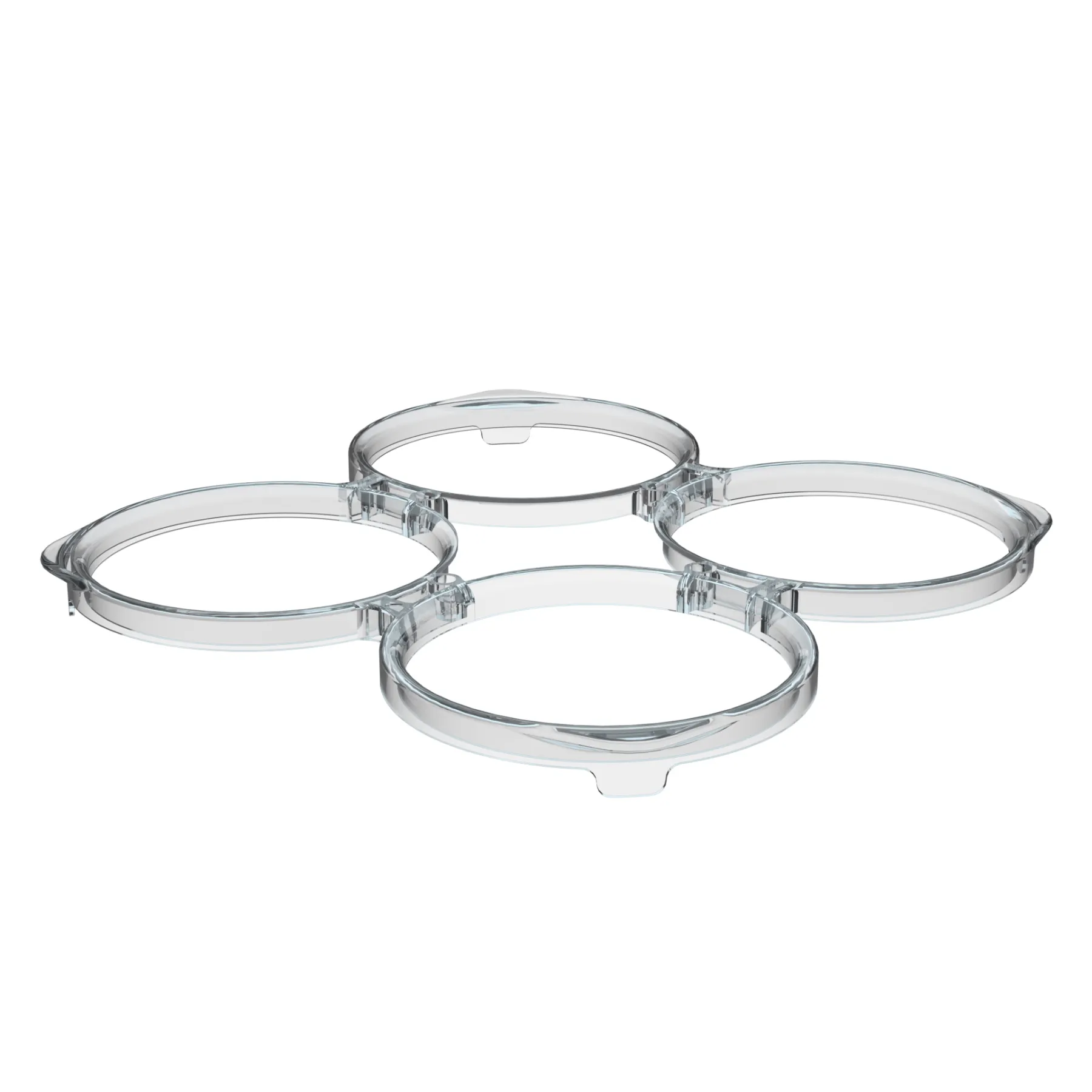

Flywoo FlyLens 85 Propeller Guard-- Clear

Flywoo ELRS 2.4GHz MiniMortal PCB T Antenna (U.FL) – Choose Size

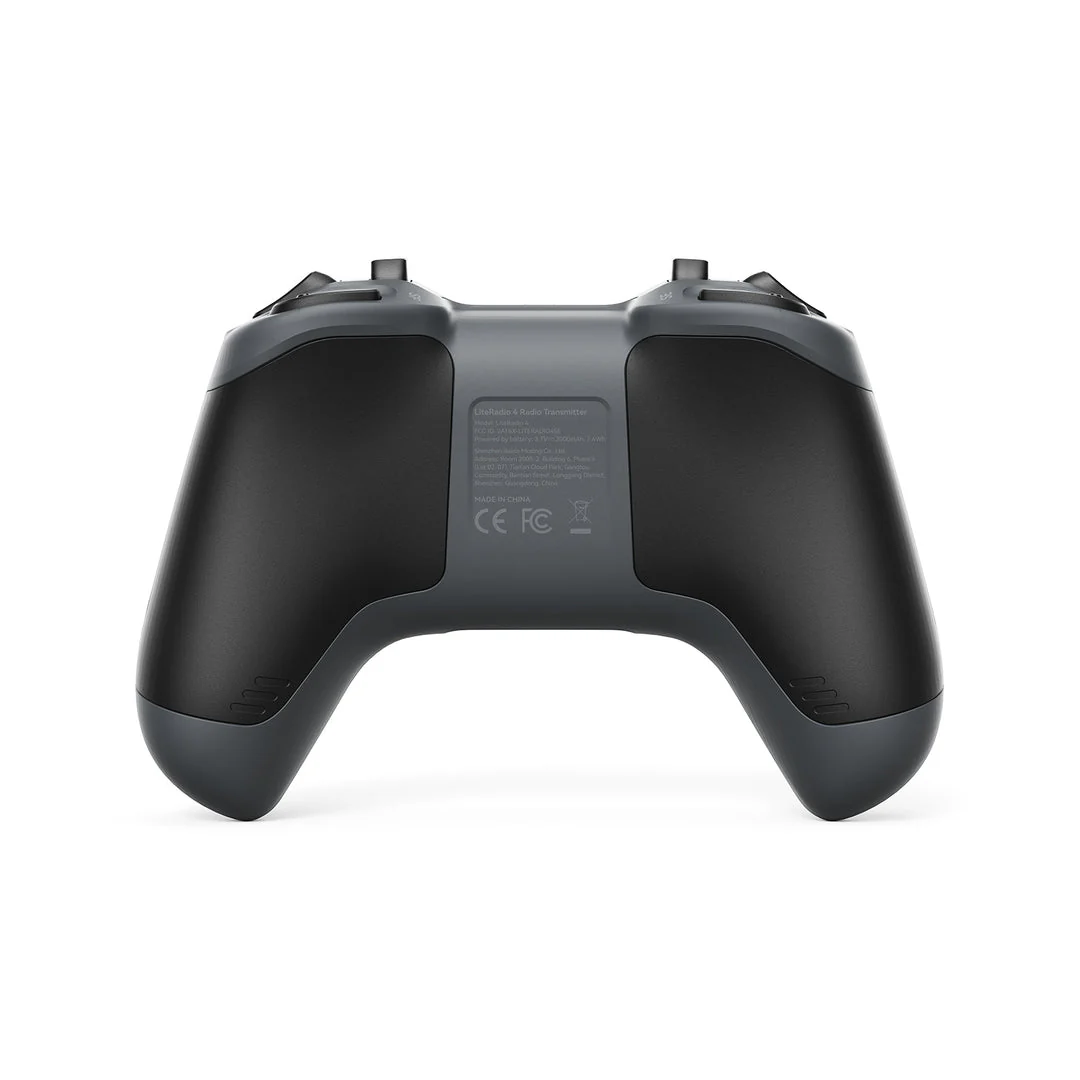

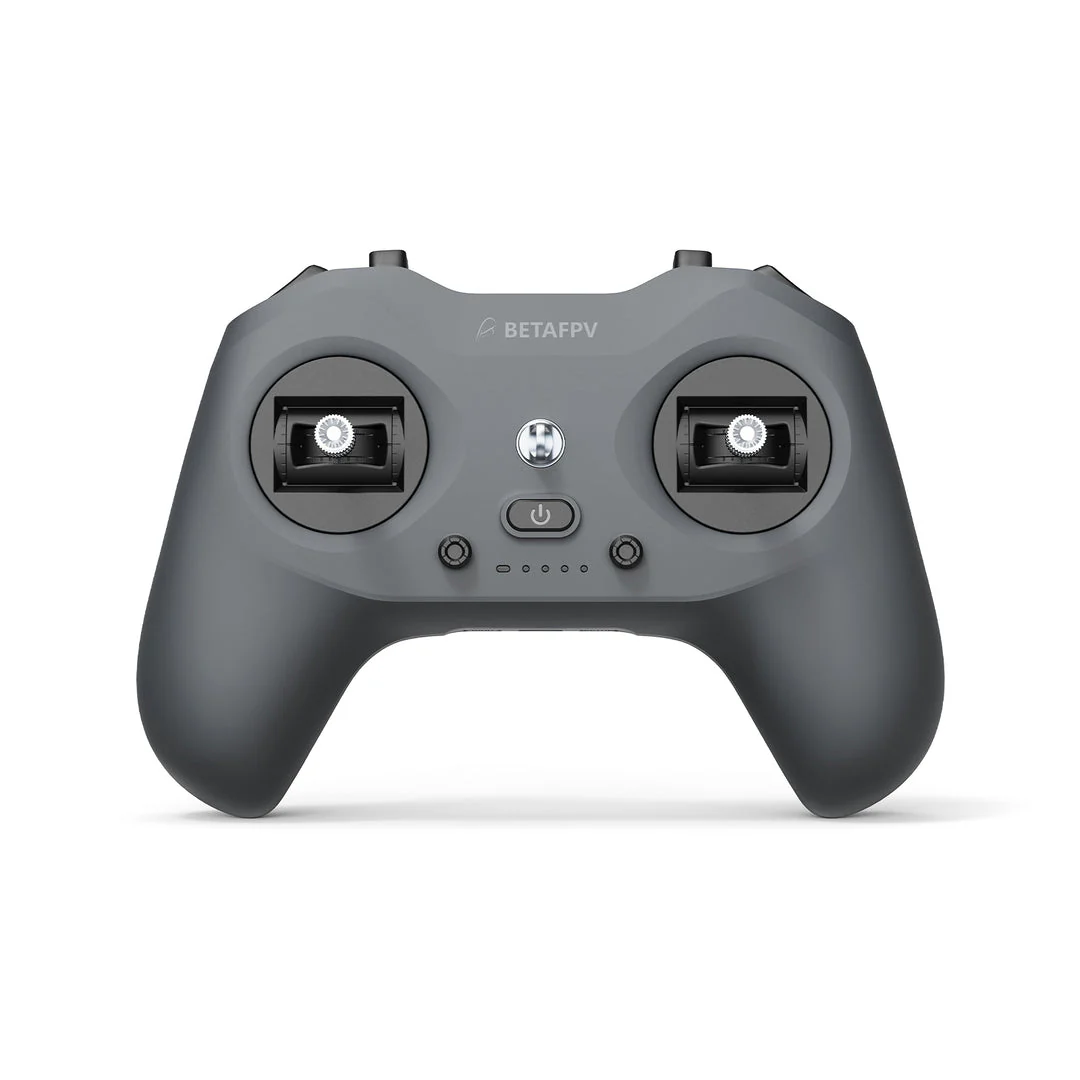

BETAFPV LiteRadio 4 Radio Transmitter – ELRS 2.4G
